Produktdetails:
Zahlung und Versand AGB:
|
| Material: | SS -Stahl | Kern: | Einzel |
|---|---|---|---|
| Mantel: | Edelstahl | Anwendung: | Prozessheizung |
| Feld: | Höflich | Zertifikat: | ISO9001-2015 |
| Hervorheben: | mineral insulated wire,mineral insulated heating cable |
||

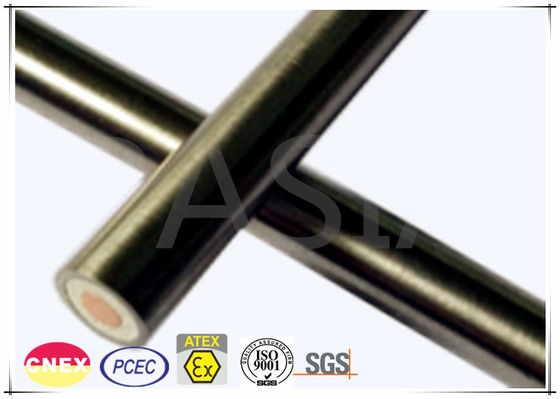

600 Volt Stainless Steel Sheath Mineral Insulated Cable with Single Core is a typical mineral insulated cable with a single core inside and a rated voltage 600 Volt for industrial use. Stainless steel sheath series mineral insulated heating cables can meet the requirements of high temperature conditions and high heating power (up to 269W/m). Pasia provide stainless steel sheathed heating cable with the highest temperature up to 600 ℃. Conductor resistance value ranges from 28000 Ω /km to 19.2 / km. Mineral insulated cable has excellent properties of mechanical strength and corrosion resistance. The needs of different power can be met based on Pasia series resistance type heating cable.
Application
| Nuclear Industry | Construction-Asphalt Heating |
| Metal Manufacturing Industry- low melting point alloy melting | Tank heating |
| Extruder barrel heating | High temperature industrial pipe heat tracing |
| Anti-coagulation or viscosity drop for process medium | All kinds of industrial electric heaters |
Heating Cable Instruction Code
MI SS-B 16N12220/60/2520/220/E1
No. 1 2 3 4 5 6 7
| NO. | Item | Detail |
| 1 | sheath material | SS |
| 2 | cable component structure | See table 1 |
| 3 | cable codes | See table 2, 3 and 4 |
| 4 | Heating cable length | in m |
| 5 | Heating cable power | in unit of W |
| 6 | Heating cable voltage | in V |
| 7 | cold end specification | See table 5 |
Cable Code
1 6 N 12220
No. 1 2 3 4
| No. | Item | Detail |
| 1 | Number of core wires | 1 or 2 |
| 2 | Voltage grade | 3=300V, 6=600V |
| 3 | Conductor material | K,N |
| 4 | cold resistance×10000 | 12220=1.222Ω/m×10000 |
Heating Cable Specification (600V Single Core)
| Cable Code | Diameter | +20℃ Standard Resistance | Maximum Manufacturing Length | Unit Weight |
| mm | Ω/m | m | kg/km | |
| 16K192 | 8.7 | 0.0192 | 88 | 406.9 |
| 16K240 | 8.2 | 0.0240 | 93 | 348 |
| 16K300 | 7.4 | 0.0300 | 110 | 278.5 |
| 16K369 | 7.0 | 0.0369 | 121 | 242.3 |
| 16K480 | 6.5 | 0.0480 | 144 | 204.9 |
| 16K600 | 6.1 | 0.0600 | 169 | 179.1 |
| 16K800 | 5.7 | 0.0800 | 236 | 152.1 |
| 16K1200 | 4.9 | 0.1200 | 280 | 102.5 |
| 16K1600 | 4.6 | 0.1600 | 324 | 88.4 |
| 16K1920 | 4.4 | 0.1920 | 350 | 81 |
| 16K2400 | 4.2 | 0.2400 | 365 | 73.3 |
| 16K3200 | 4.0 | 0.3200 | 385 | 65.2 |
| 16K4800 | 3.7 | 0.4800 | 436 | 56.4 |
| 16N7333 | 4.0 | 0.7333 | 118 | 65.2 |
| 16N9167 | 3.8 | 0.9167 | 128 | 60 |
| 16N12220 | 3.7 | 1.2220 | 140 | 54.5 |
| 16N15710 | 3.5 | 1.5710 | 150 | 50.5 |
| 16N24444 | 3.4 | 2.4444 | 168 | 45.1 |
| 16N44000 | 3.2 | 4.4000 | 187 | 40 |
| 16N122220 | 2.9 | 12.2220 | 217 | 34.7 |
| 16N275000 | 2.8 | 27.5000 | 238 | 32.3 |
