Produktdetails:
Zahlung und Versand AGB:
|
| Material: | Edelstahl | Bindung: | Schweißen |
|---|---|---|---|
| Materialstärke: | 0,08–0,2 mm | Zellenseitenlänge: | 0.8-25 Millimeter |
| Höhe: | 3-250 mm | Grad: | SS304，SS316L |

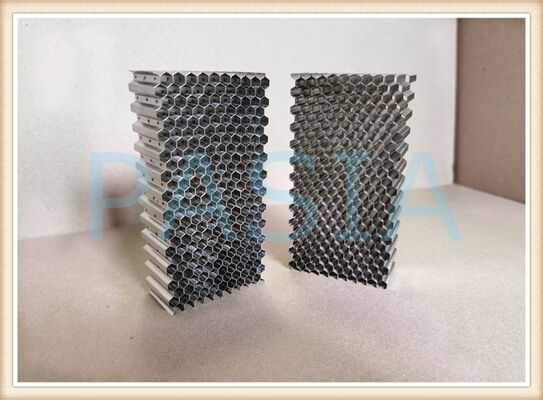

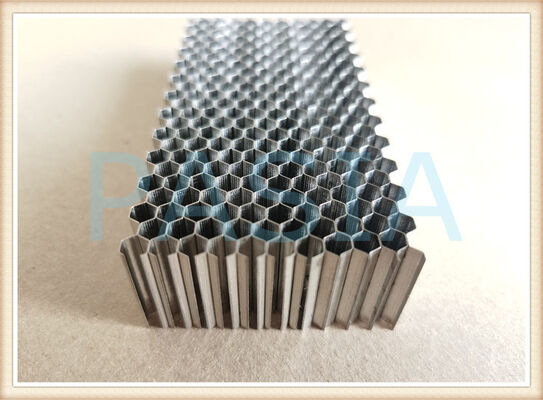

Industrial Heat Exchanger Use High-strength Corrosion-resistant Stainless Steel Honeycomb Core
Industrial Heat Exchanger Use High-strength Corrosion-resistant Stainless Steel Honeycomb Core is a typical use in industrial heat exchangers relies on their high specific surface area and periodic hexagonal channel structure to induce forced flow turbulence and disrupt boundary layers. This enables extremely efficient heat transfer within a very compact space, while meeting demanding requirements for high temperature, high pressure, and corrosive environments.
Specifications
| Cell Size (mm) | 25.0 | 16.0 | 12.7 | 10.0 | 6.4 | 5.6 | 4.8 | 3.2 | 1.6 | 0.8 |
| Height Range (mm) | 50-450 | 50-450 | 50-150 | 50-150 | 5-100 | 5-90 | 5-60 | 5-60 | 3-30 | 3-25 |
| Foil Thickness (mm) | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.20 | 0.076 | 0.05 |
| Cubic Density (kg/m3) | 165 | 256 | 320 | 403 | 616 | 699 | 806 | 1164 | 909 | 1164 |
| Materials | SS304, SS316 or SS316L | |||||||||
| Welding | Spot Welding with one area five spots or laser welding | |||||||||
| Shapes | Customized shape available not limited to ring, plate, loop etc | |||||||||
Properties
Welded honeycomb core, no matter what material is, such as aluminum, stainless steel, steel, titanium etc, possesses better mechanical properties against regularly produced glued honeycomb core. So it performs significantly better again the common honeycomb bonded by adhesive on strength, modulus, corrosion resistance, dimensional stability etc. However, generally, these critical performance variables should be evaluated: material, airflow and attenuation.
1. Material Composition
Stainless steel grade should be considered according to the real application. Custom materials other than stainless steel are available upon request. Here are the parameters need to be evaluated:
Durability
Material type and grade is the first aspect to be evaluated then plating, discussed in depth later, can improve durability.
Weight
Material, structure and thickness of the material can affect the total part weight.
2. Corrosion resistance
Typically brass and stainless steel should be used in slashing environments. Plating or nonconductive surface coatings can improve corrosion resistance for all honeycomb types.
3. Shielding Performance
Different honeycomb core material offerings have different electrical performance, due to both inherent base material properties as well as the differing manufacturing processes used during honeycomb forming. Therefore, different EMI shielding performance may be realized. Shielding performance for different materials is ranked as brass, aluminum, steel and stainless steel. Plating can improve honeycomb shielding.
Specific attenuation requirements can be met through either plated or unplated alloys. Plating adds cost to the final product vent. Plating process for improving shielding is ranked as nickel, tin, tin-lead and zinc.
4. Airflow & Attenuation
Airflow and attenuation are inversely proportional. Infinitely large honeycomb cells result in infinitely small attenuation (and vice versa). Typically, as a design baseline, airflow performance requirements are calculated to meet thermal performance needs for the assembly that the vent is to be installed onto. Once airflow is determined, attenuation and other requirements can be evaluated. Standard cell sizes for honeycomb are 1/16", 1/8" and 1/4", with 1/8" being most common. Standard thicknesses are 1/4," 1/2" and 1," with 1/4" being most common.
Advantages
The product is non‑combustible (fire resistance up to A1 grade), offers effective heat dissipation, sound insulation, and due to its open‑cell structure, provides electromagnetic shielding.
Typical applications:
| Industry Sector | Application Example | Key Advantages |
| Petrochemical | Waste heat recovery, reboilers, overhead condensers | Resistance to corrosive media, anti‑fouling, compact, safe |
| Power & Metallurgy | Boiler flue gas waste heat recovery, FGD slurry cooling |
Wear‑resistant, high‑temperature flue gas handling, high efficiency
|
| Food & Pharmaceutical | Fermenter cooling jackets, product sterilization heating, CIP cleaning systems | Dead‑zone‑free design avoids cross‑contamination; gasket‑free – no rubber aging contamination |
| Environmental & Wastewater | Saline wastewater evaporators, sewage source heat pumps, exhaust gas condensation | 316L grade resists chloride corrosion; self‑cleaning structure; handles high viscosity |
| Marine & Offshore | Marine engine coolers, seawater/fresh water heat exchange | Resists electrochemical seawater corrosion; withstands ship vibration and shock |
| Biochemical Fermentation | Large‑scale fermenter cooling jackets | Dimples/honeycomb points create vortices for enhanced cooling; direct evaporation of liquid ammonia for high heat absorption |
